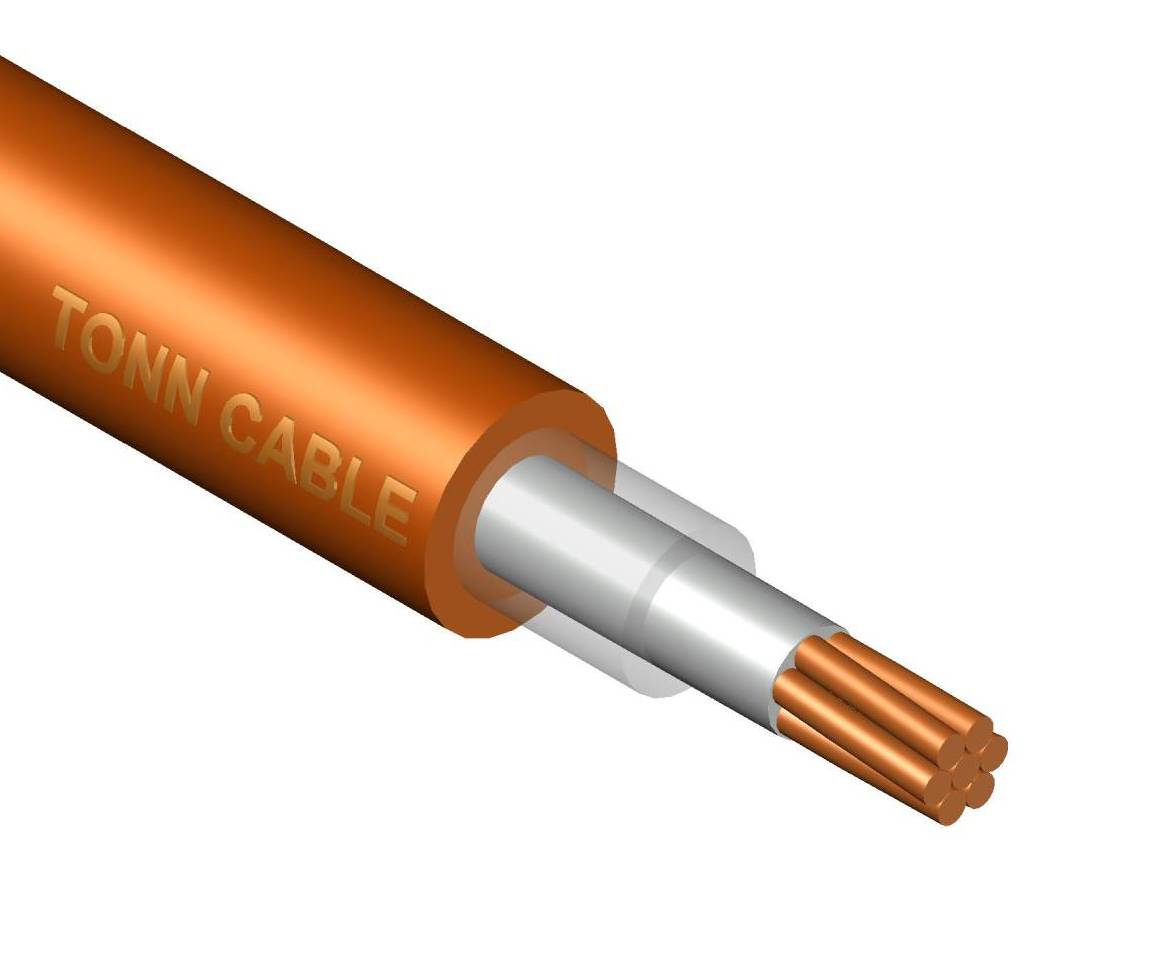

CU/MICA/XLPE or XLEVA/PVC-FR or LSHF (1-4 CORES)
Copper, Mica Tape, XLPE or XLEVA Insulated, PVC-FR or LSHF Cable
Voltage rating: 600/1000 V
Ref. Standard: IEC 60502-1, IEC 60331-21, BS 6387 CWZ, IEC 60332-1, IEC 60332-3-22 Cat.A, IEC 60332-3-24 Cat.C

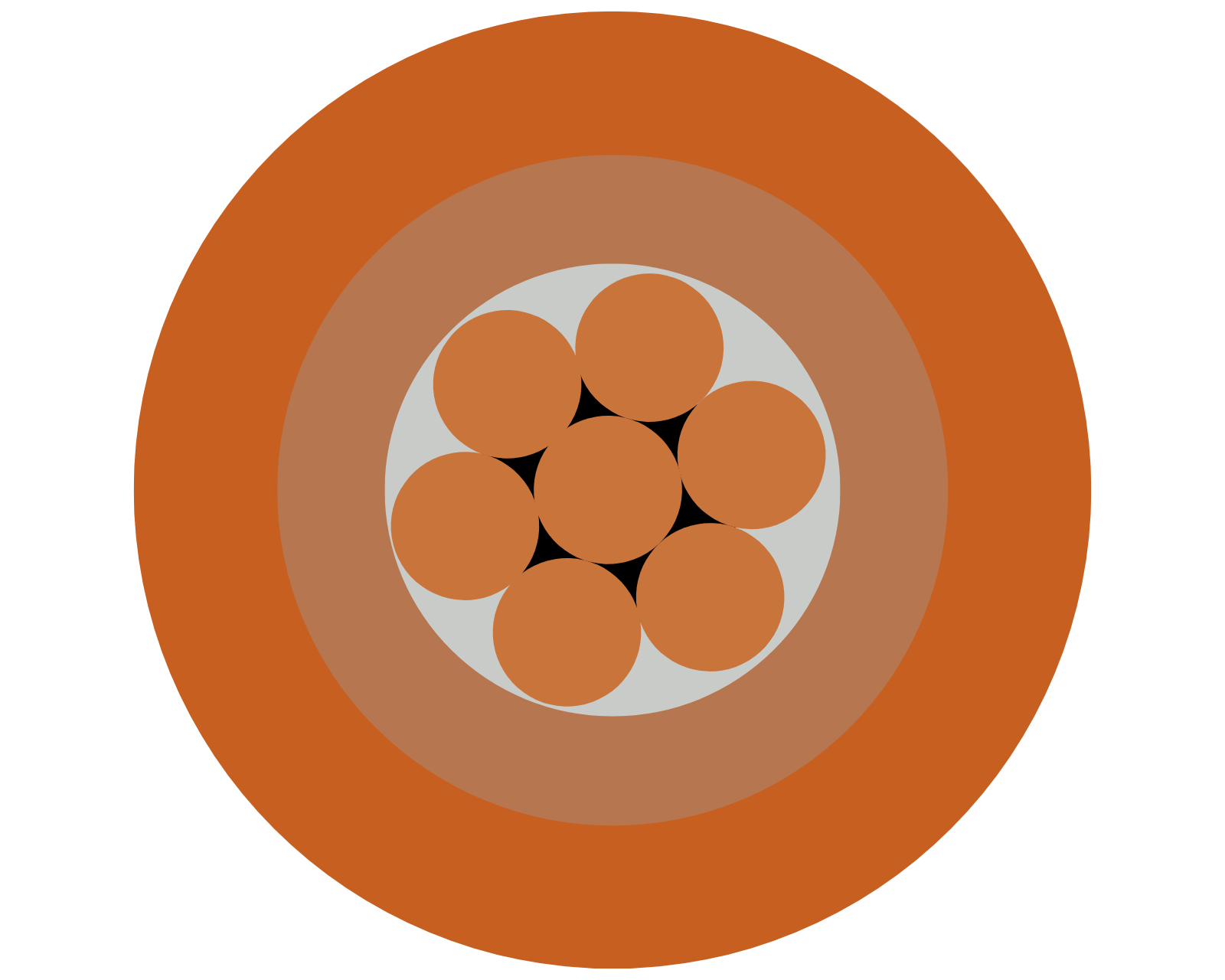

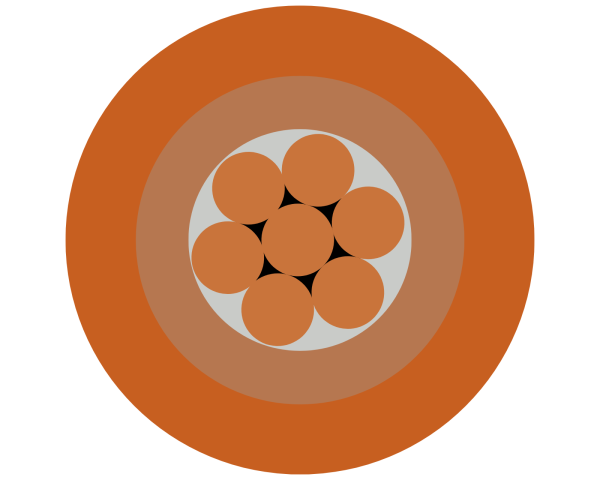

| Construction | |
|---|---|
| Conductor | Stranded Plain Annealed Copper (Class 2) |
| Fire Proof Layer | Mica Tape |
| Insulation | 1 Core – Natural 2 Cores – (Red, Black) or (Brown, Blue) 3 Cores – (Red, Yellow, Blue) or (Brown, Black, Grey) 4 Cores – (Red, Yellow, Blue, Black) or (Brown, Black, Grey, Blue), or as per request |
| Sheath | PVC-FR or LSHF Compound |
| Sheath Colour | Orange, or as per request |
Download catalogue:
2 cores
3 & 4 cores
