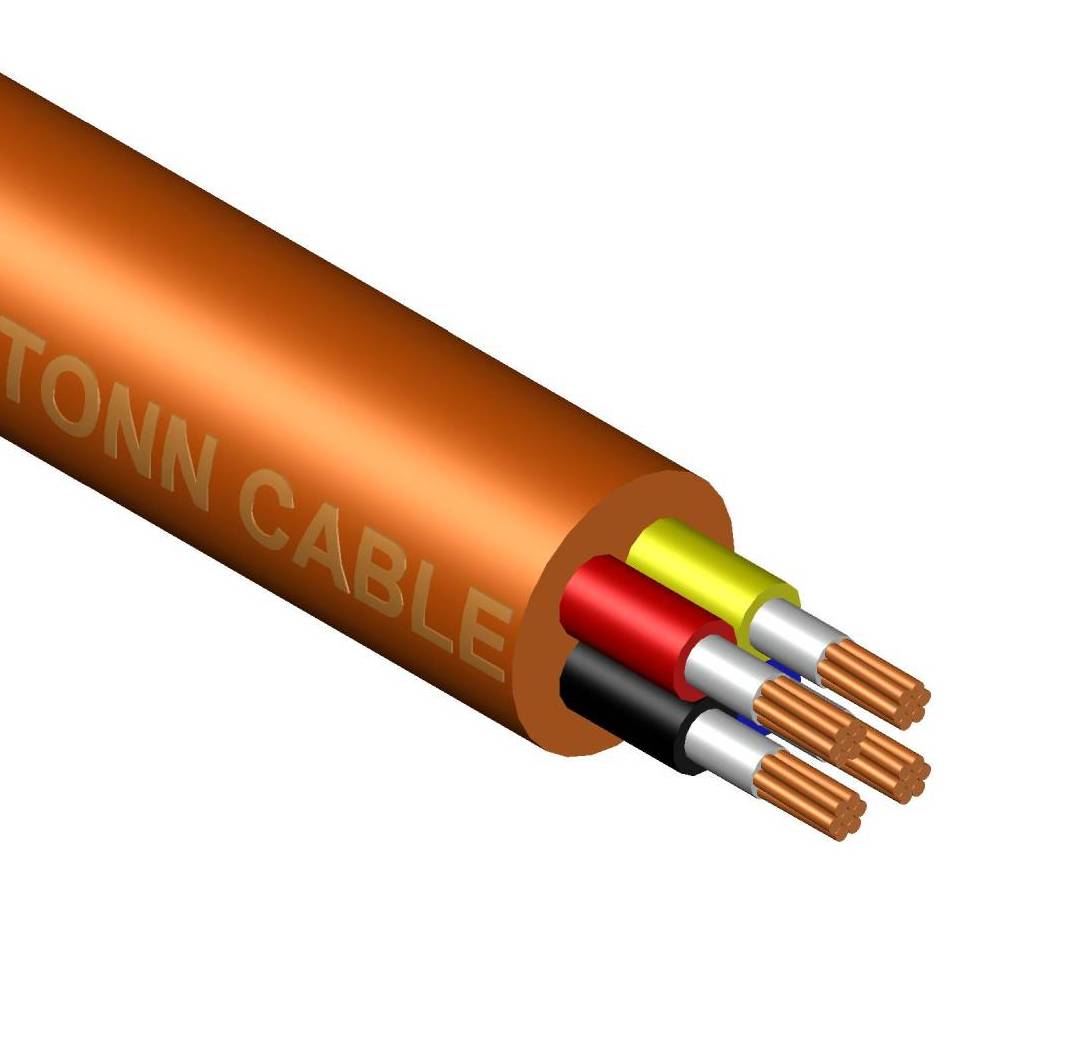

CU/MICA/XLPE or XLEVA/PVC-FR or LSHF (MULTICORES)

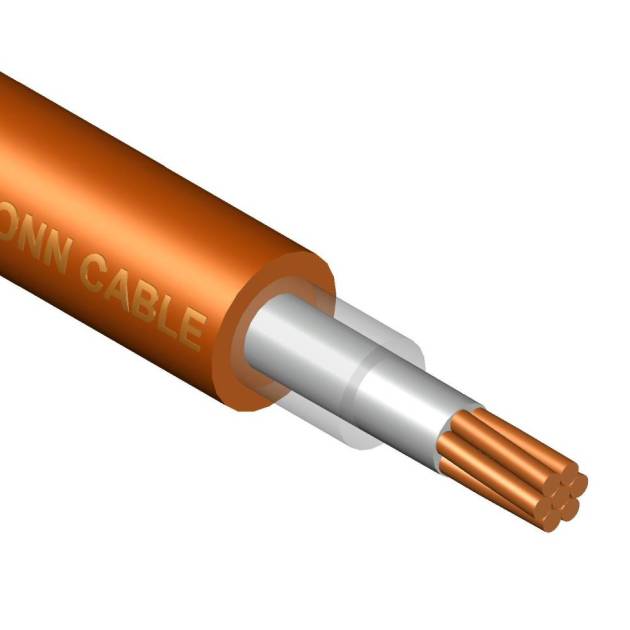

Copper, Mica Tape, XLPE or XLEVA Insulated, PVC-FR or LSHF Sheathed Control Cable
Voltage rating: 600/1000 V
Ref. Standard: IEC 60502-1, IEC 60331-21, BS 6387 CWZ, IEC 60332-1, IEC 60332-3-22 Cat.A, IEC 60332-3-24 Cat.C

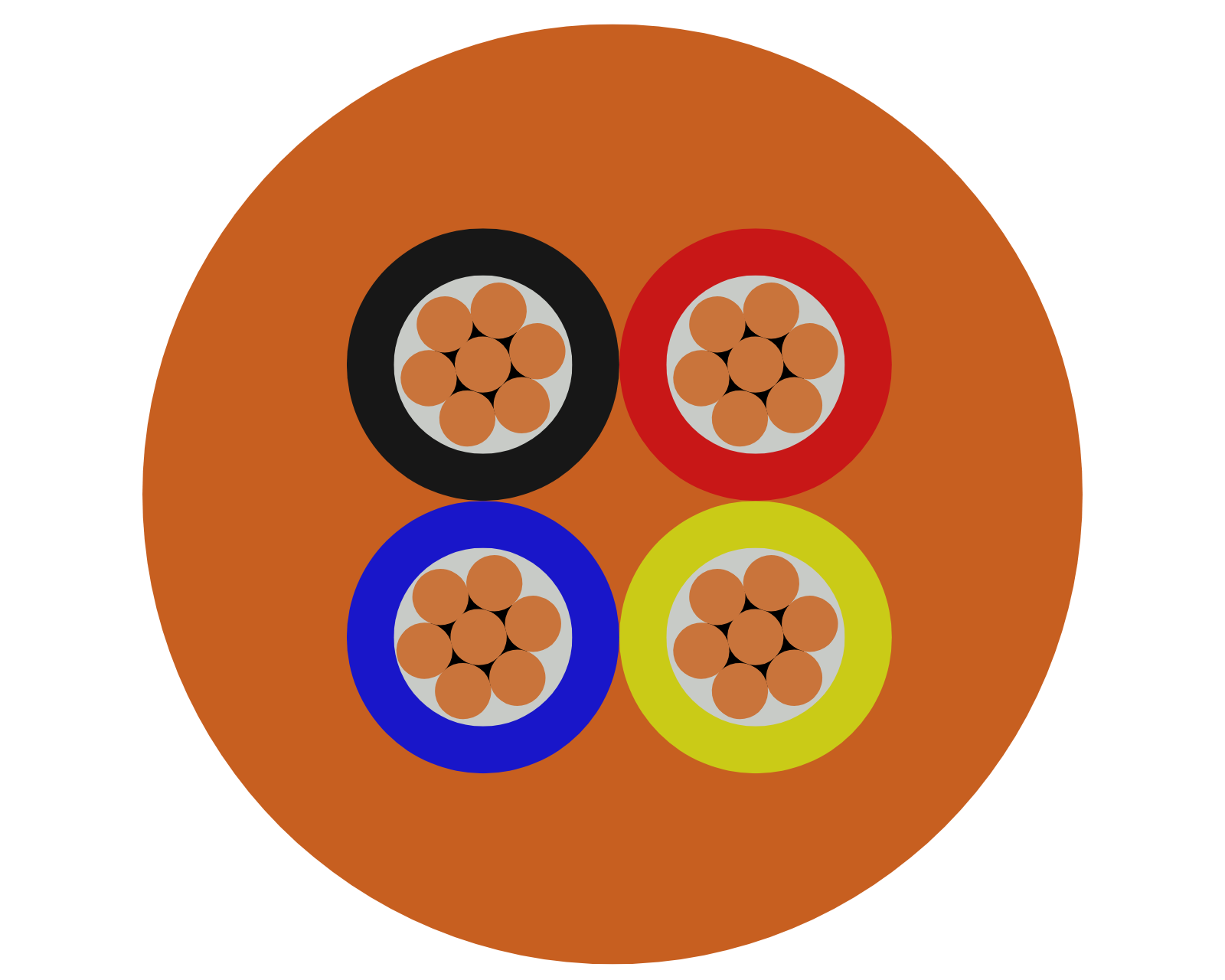

| Construction | |
|---|---|
| Conductor | Stranded Plain Annealed Copper (Class 2) |
| Fire Proof Layer | Mica Tape |
| Insulation | XLPE or XLEVA Compound |
| Insulation Colour | White with Black Numberings, or as per request |
| Sheath | PVC-FR or LSHF Comppound |
| Sheath Colour | Orange, or as per request |
