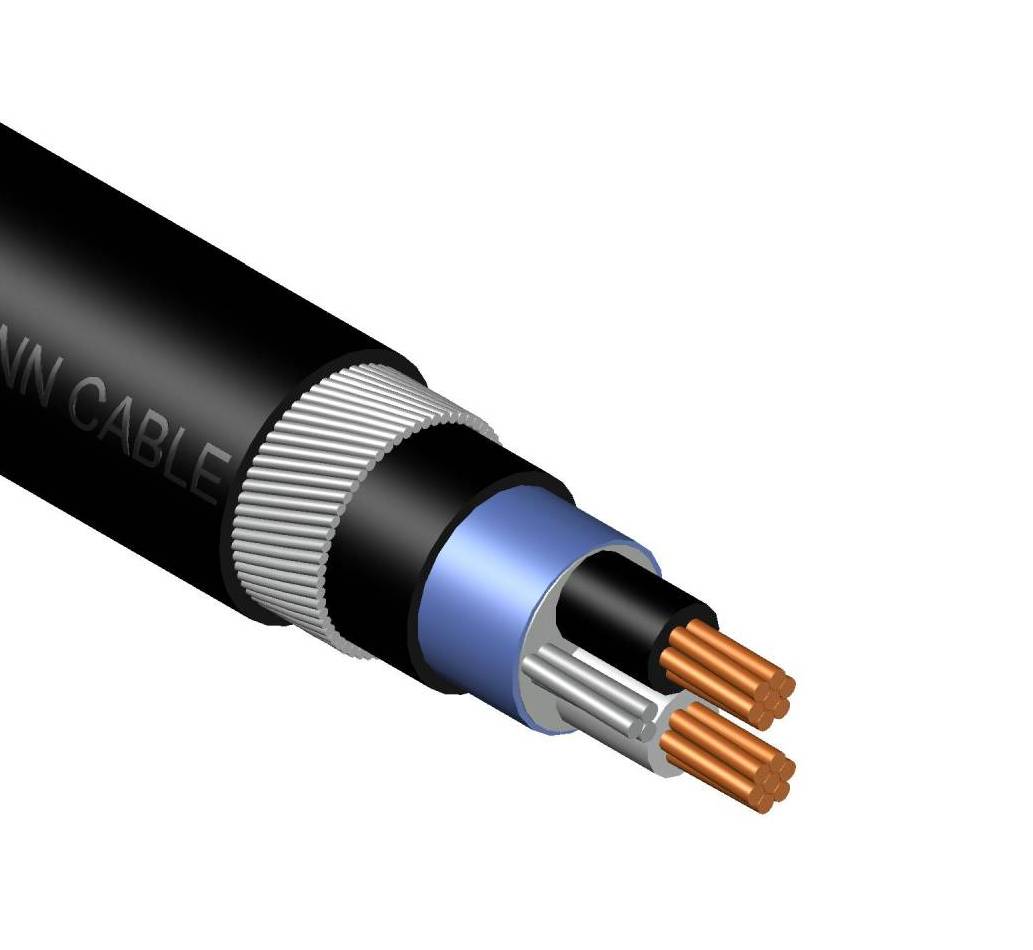

CU/PVC or XLPE/OSCR/SWA/PVC
PVC or XLPE Insulated, PVC Sheathed, Overall Screened, Galvanized Steel Wire Armoured Instrumentation Cable
Voltage rating: 300/500 V
Ref. Standard: BS EN 50228-7
| Construction | |
|---|---|
| Conductor | Stranded Plain Annealed Copper (Class 2) |
| Insulation | PVC or XLPE Compound |
| Insulation Colour | 1 Pair – Black, White 2 Pairs & Above – Black with White Numberings, or White with Black Numberings 3 Cores (1 Triad) – Red, Black, White 4 Cores & Above – Black with White Numberings, or as per request |
| Drain Wire | Tinned Copper Wire |
| Screen | Aluminium Tape |
| Sheath | PVC Commpound |
| Sheath Colour | Black, or as per request |
