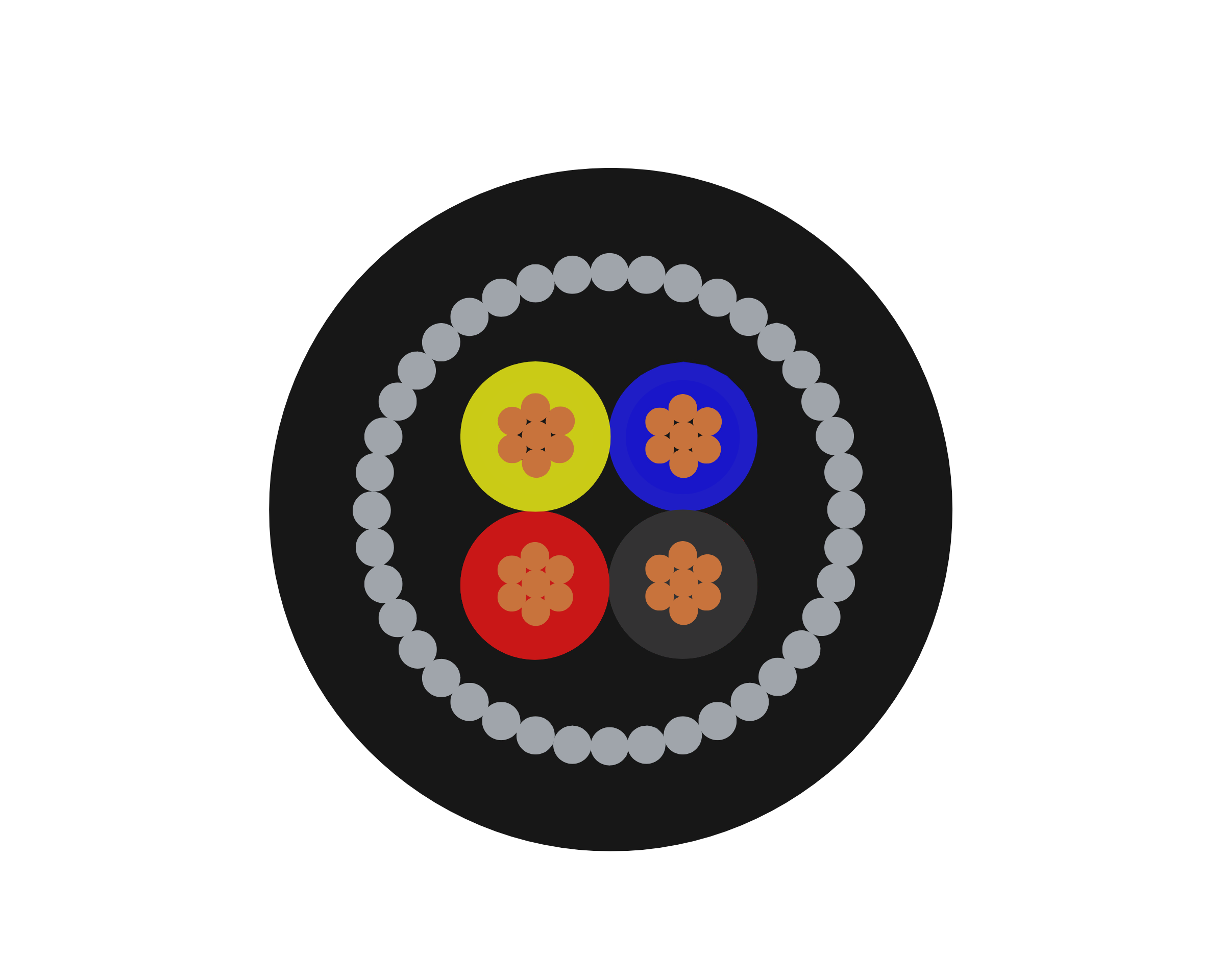

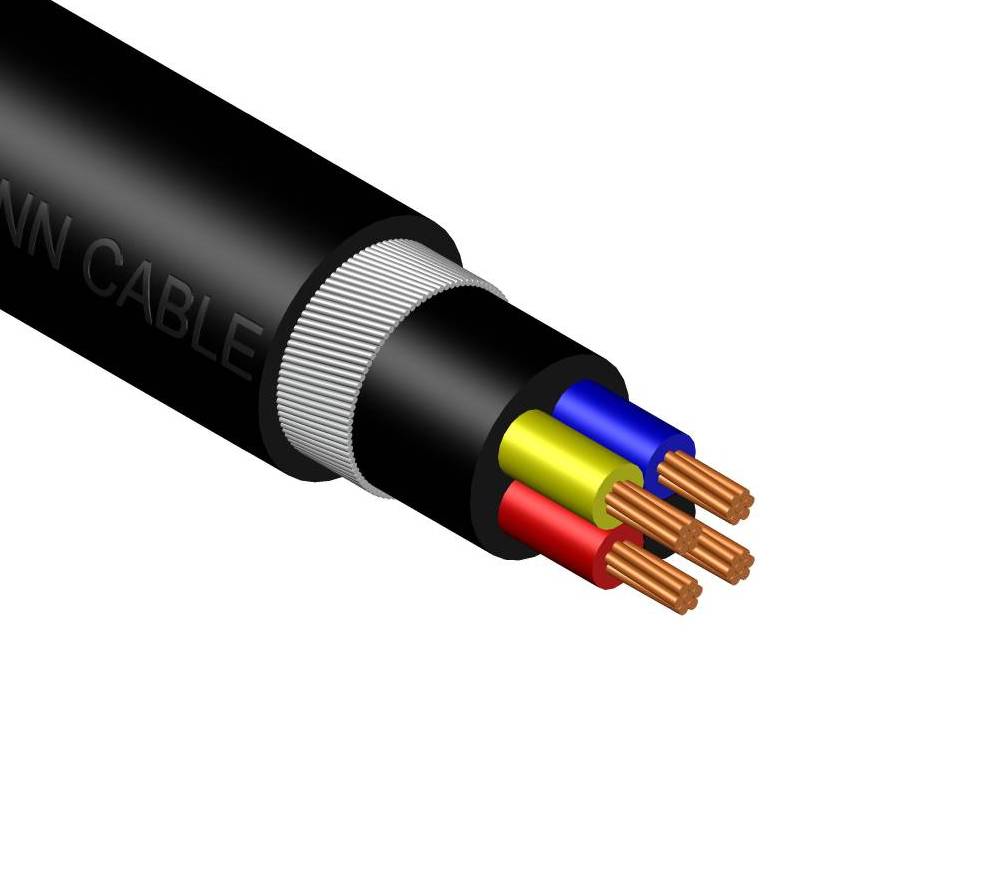

CU/PVC/SWA/PVC (2-4 Cores)
Copper, PVC Insulated, Galvanized Steel Wire Armoured, PVC Sheathed Cable
Voltage rating: 600/1000 V
Ref. Standard: MS 2103, IEC 60502-1
| Construction | |
|---|---|
| Conductor | Stranded Plain Annealed Copper (CLass 2) |
| Insulation | PVC Compound |
| Insulation Colour | 2 Cores – (Red, Black) or (Brown, Blue) 3 Cores – (Red, Yellow, Blue) or (Brown, Black, Grey) 4 Cores – (Red, Yellow, Blue, Black) or (Brown, Black, Grey, Blue) |
| Bedding | PVC Compound |
| Bedding Colour | Black, or as per request |
| Armour | Galvanized Steel Wire |
| Sheath | PVC Compound |
| Sheath Colour | Black, or as per request |
Download catalogue:
2 cores
3 cores
4 cores
