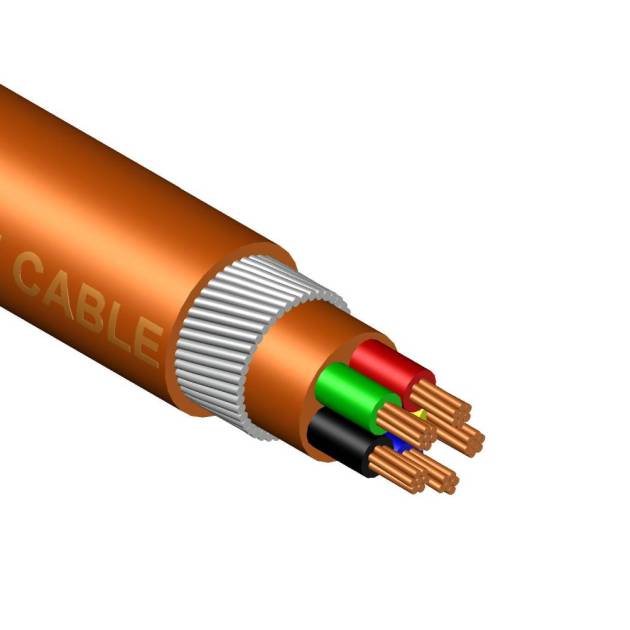

CU/XLPE or XLEVA/SWA/PVC-FR or LSHF (MULTICORES)
Copper, XLPE or XLEVA Insulated, Galvanized Steel Wire Armoured, PVC-FR or LSHF Sheathed Control Cable
Voltage rating: 600/1000 V
Ref. Standard: IEC 60502-1, IEC 60332-1, IEC 60332-3-22 Cat.A, IEC 60332-3-23 Cat.B, IEC 60332-3-24 Cat.C, IEC 60754, IEC 61034
| Construction | |
|---|---|
| Conductor | Stranded Plain Annealed Copper (Class 2) |
| Insulation | XLPE or XLEVA Compound |
| Insulation Colour | White with Black Numberings, or as per request |
| Bedding | PVC-FR or LSHF Compound |
| Bedding Colour | Orange or Black, or as per request |
| Armour | Galvanized Steel Wire |
| Sheath | PVC-FR or LSHF Compound |
| Sheath Colour | Orange, or as per request |
